Product Overview

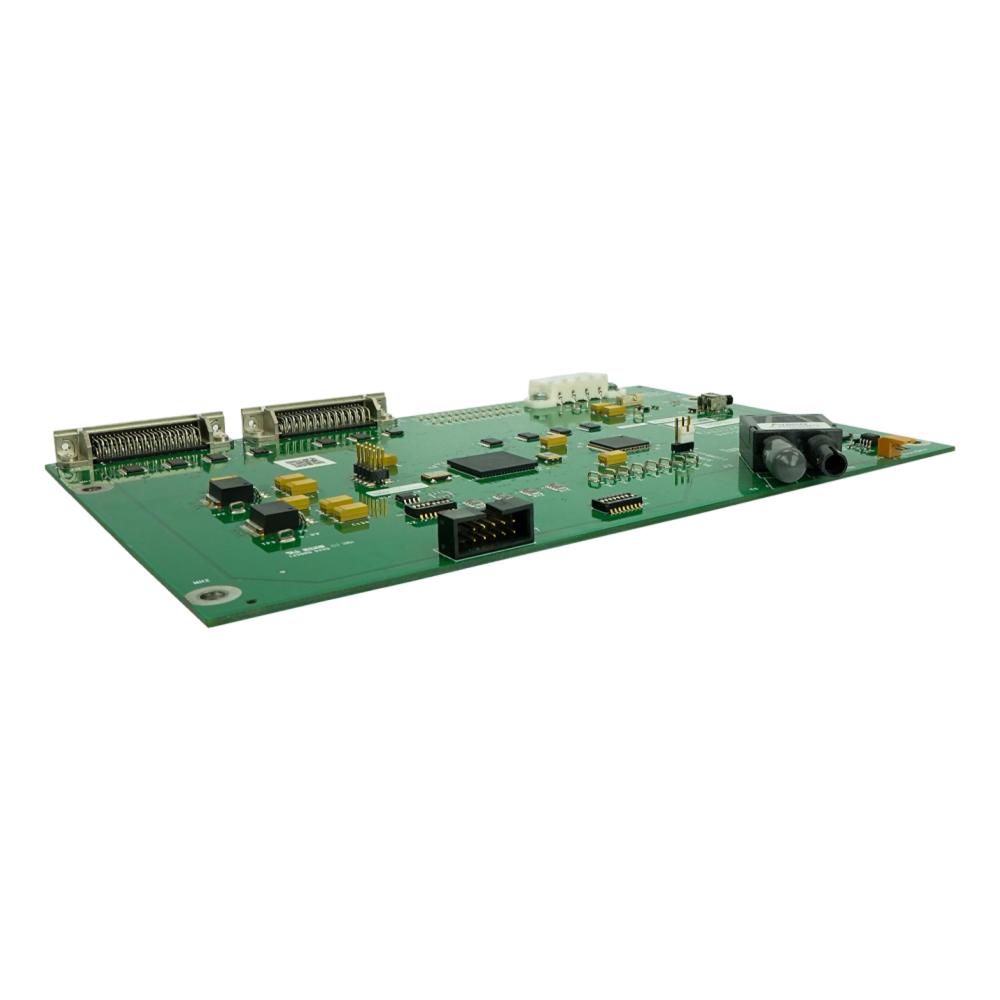

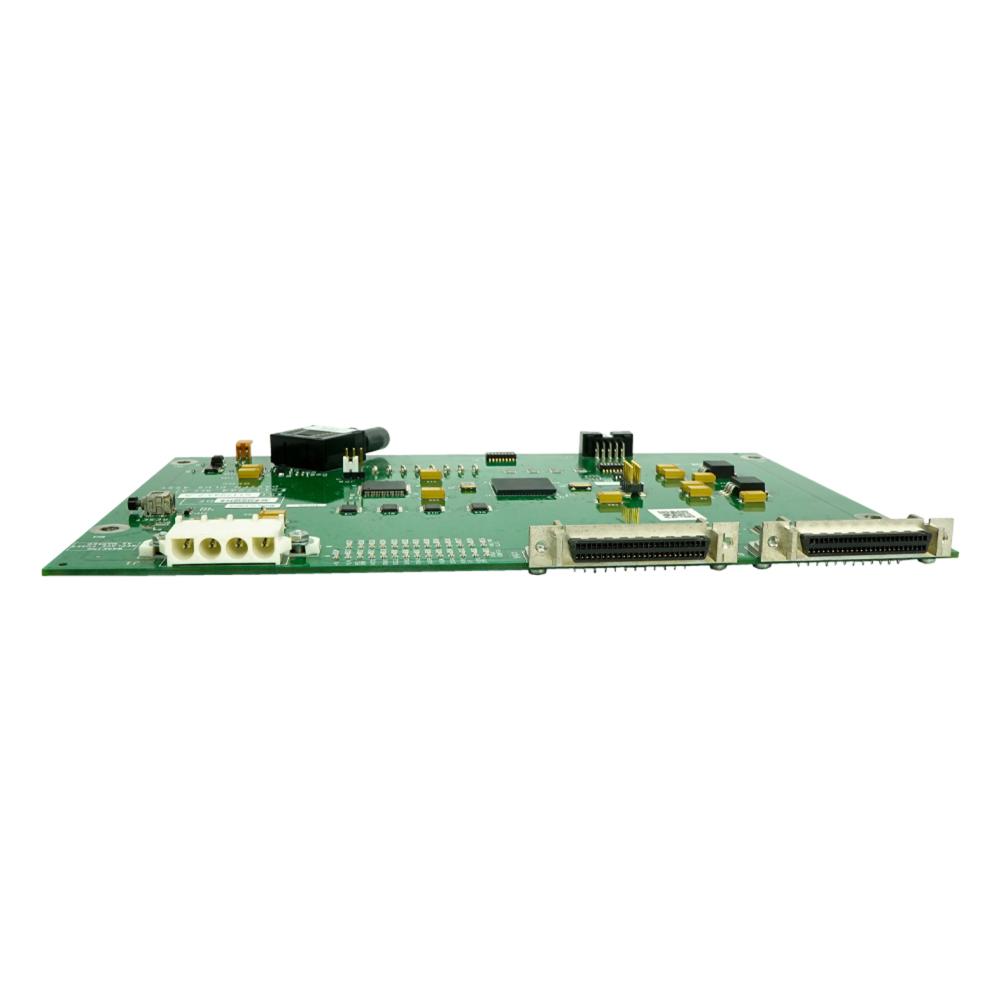

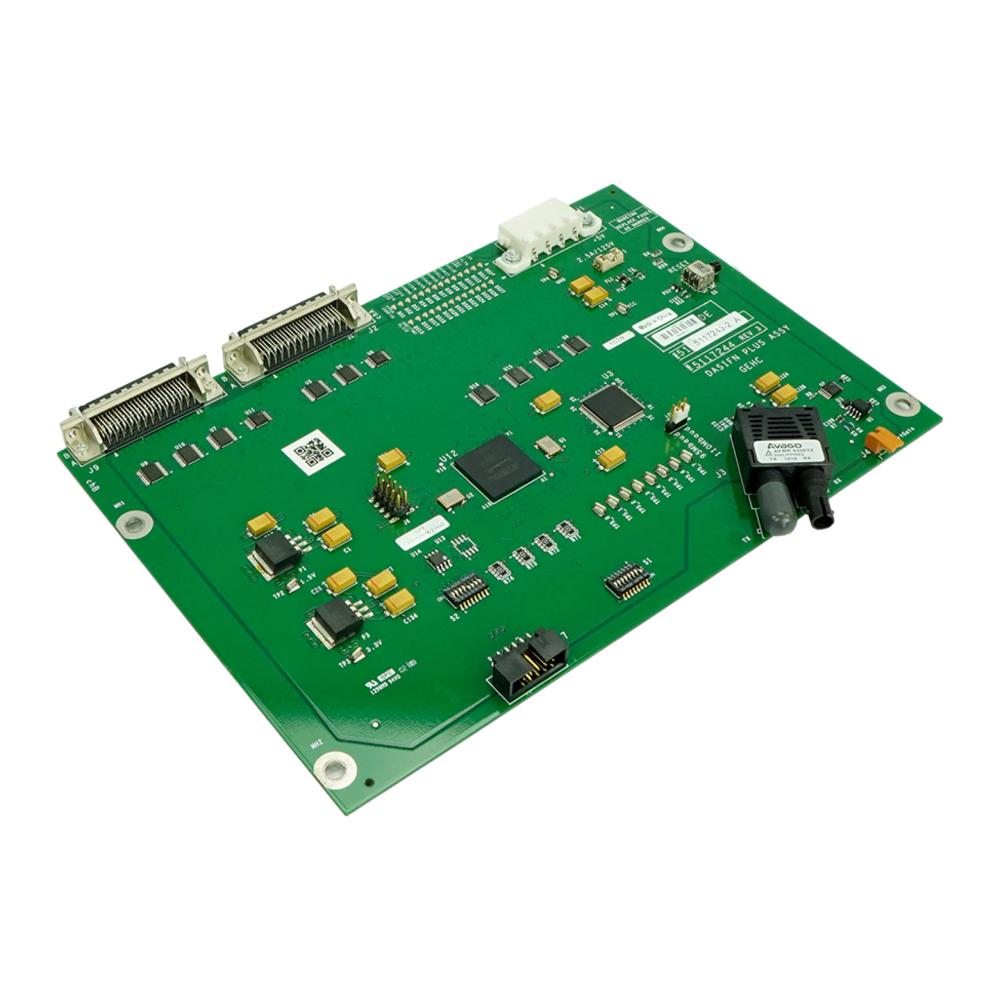

The New Release Data Acquisition System Interface Board (DASIFN) Plus Board is part of the DASIFN plus pannel assembly. It is the main interface between DCP/DTRF and the Operator Console and receives scan data in a high-speed serial stream from the slip ring interface and transmits it to the DBPCI (DAS Buffer PCI) Board. The board has a reset button for resetting the DASIFN PLUS Board.The input power required in the board is +5 VDC. The Board has status LED's for both power and other control signals. The board has HFBR-5205 transceiver with 1300 nm, 62.5/125 glass fiber optic cable for the slip ring interface and two 50 pin SCSI connecters to interface with DBPCI board.
5117243-2U
