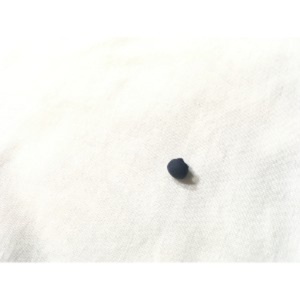

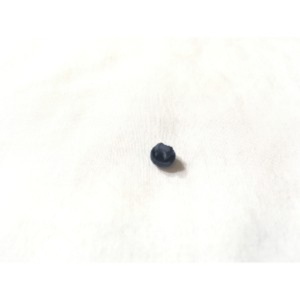

Umbrella Check Valve BCG (Breathing Circuit Gas)
| 1505-3267-000 | |
| Respiratory Care | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
These umbrella shaped silicone check valves are used as sealing elements. When the umbrella check valve is mounted in a seat, the convex diaphragm flattens out against the valve seat and absorbs a certain amount of seat irregularities and creates a certain sealing force. The umbrella valve will allow forward flow once the head pressure creates enough force to lift the convex diaphragm from the seat and so it will allow flow at a predetermined pressure in one way and prevent back flow immediately in the opposite way. The central stem holds the component in place and thus avoid the need spring and central disc positioner. Use of silicone offers good thermal and thermoxidative resistance. This umbrella valve can be easily install by simply pushing it in the required position. This umbrella check valve is the vent engines of the GE's Engstrom Pro, Carescape R860 Ventilator Respiratory Care Systems.
Compatible Products
Engstrom
